JBL Cinema SB 170

• Features & Benefits
• What’s in the box
• Technical Specifications

Features and Benefits

220W power output

Incredible, powerful sound for an immersive cinematic experience.

Dedicated sound mode to enhance voice clarity

Just press the “Voice” button on the remote control to enhance voice clarity, and never miss a word of your favorite movie.

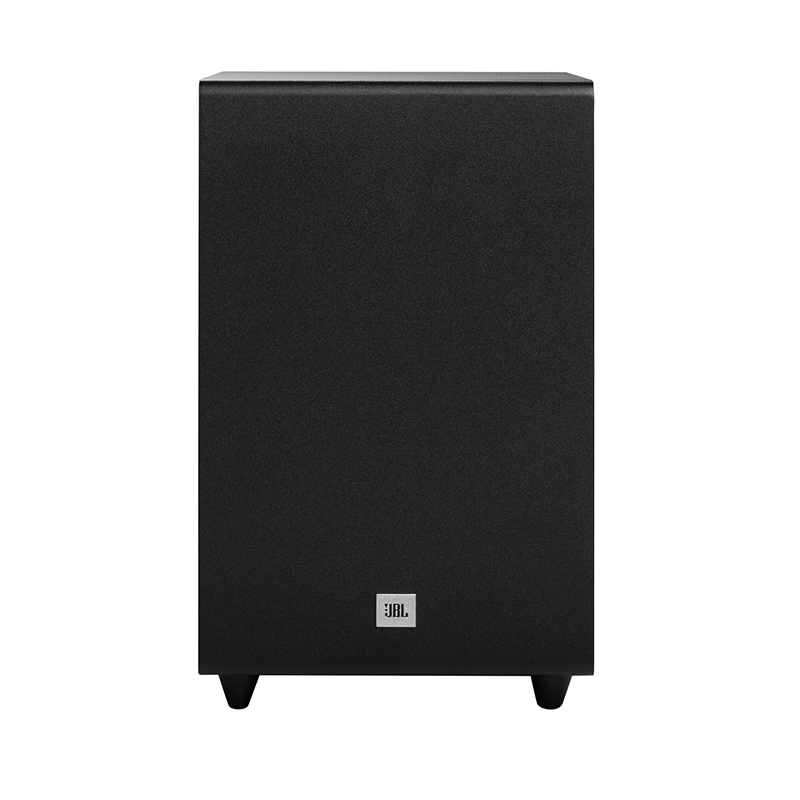

Wireless subwoofer for extra deep bass

Enjoy deep and thrilling bass and clutter-free experience.

Dolby Digital embedded

Dolby Digital embedded for ultimate movie experience.

Wireless music streaming via Bluetooth

Stream and enjoy all your music wirelessly from any mobile device.

One cable connection with HDMI ARC

The one cable HDMI ARC connection allows for the simplest set-up and a hassle-free user experience.

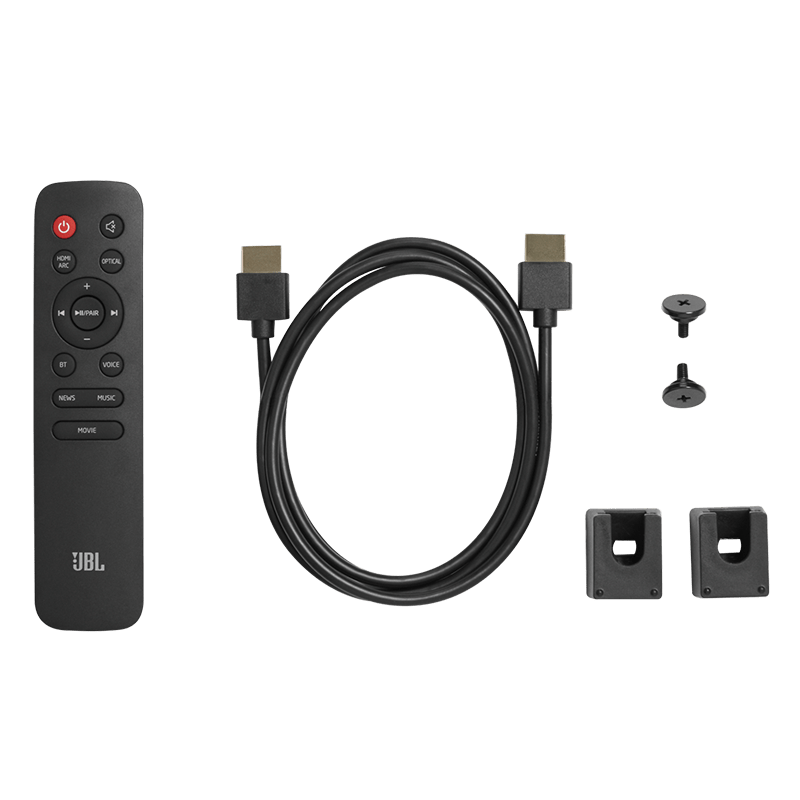

What’s in the box:

• Soundbar
• Wireless subwoofer
• Remote control with batteries
• Power cords (up to 8pcs depending on region SKUs) HDMI cable
• Wall-mount bracket kit with screws
• Quick start guide
• Warranty card
• Safety sheet

Technical Specifications

• Power supply: 100 – 240VAC, ~ 50/60Hz
• Total speaker power output (Max. @THD 1%): 220W
• Soundbar power output (Max. @THD 1%): 2 x 52W
• Subwoofer power output (Max. @THD 1%): 116W
• Soundbar transducer: 2 x (48 x 90)mm racetrack driver + 2 x 0.5" tweeter

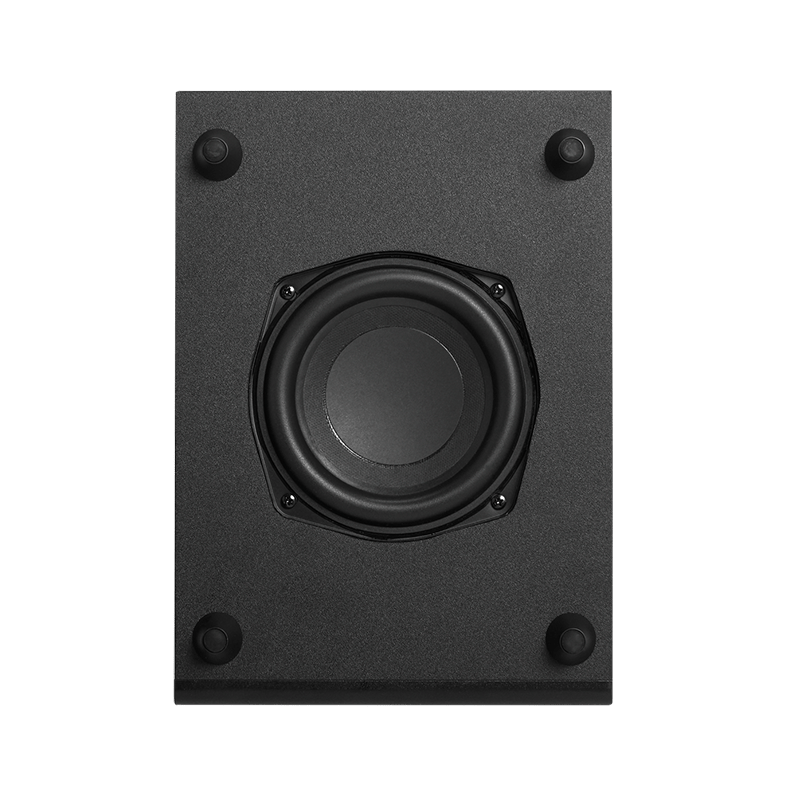

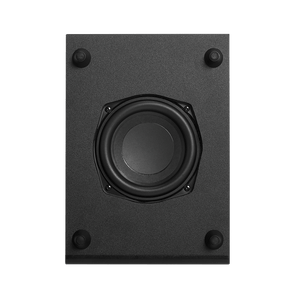

• Operating temperature: 0°C – 45°C Subwoofer transducer: 5.25", wireless sub
• HDMI Video output (With Audio return channel): 1
• HDMI HDCP version: 1.4
• Max SPL: 82dB
• Frequency response: 40Hz – 20kHz
• Audio inputs: 1 Optical, Bluetooth (USB is for Service only.)
• Bluetooth version: 4.2
  Bluetooth profile: A2DP V1.3/ AVRCP V1.5
• Bluetooth frequency range: 2402MHz – 2480MHz
• Bluetooth Max. transmitting power: <0dbm (EIRP)
• Modulation Type: GFSK, π/4 DQPSK
• 2.4G Wireless frequency range: 2400 – 2483MHz
• 2.4G Max. transmitting power: 3dBm

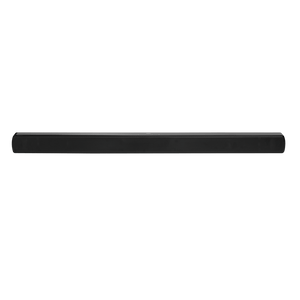

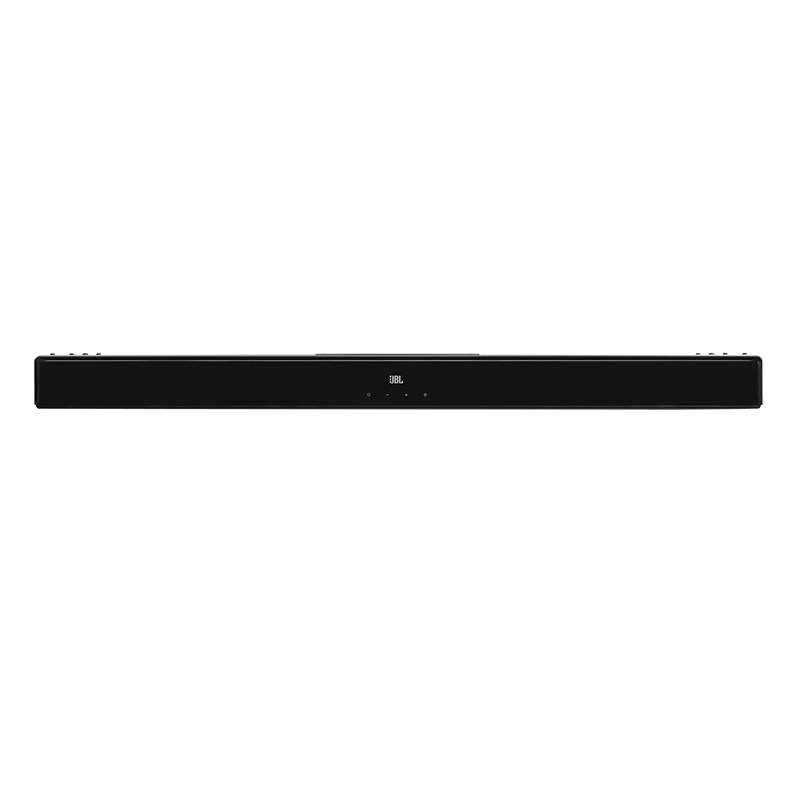

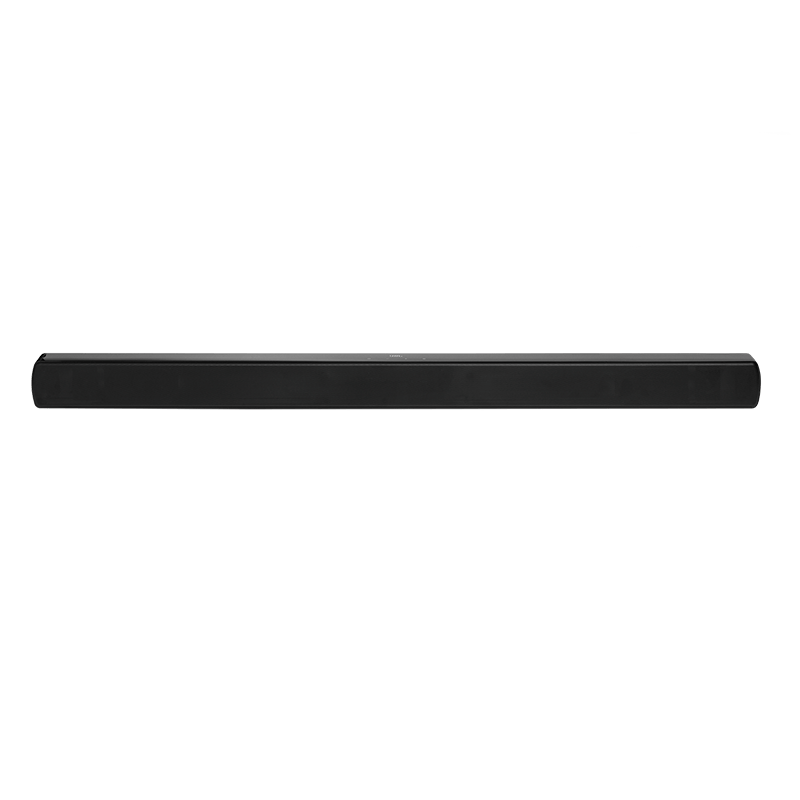

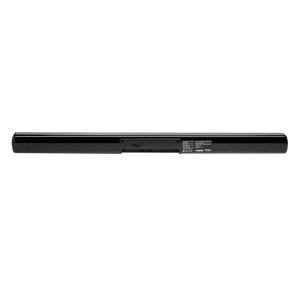

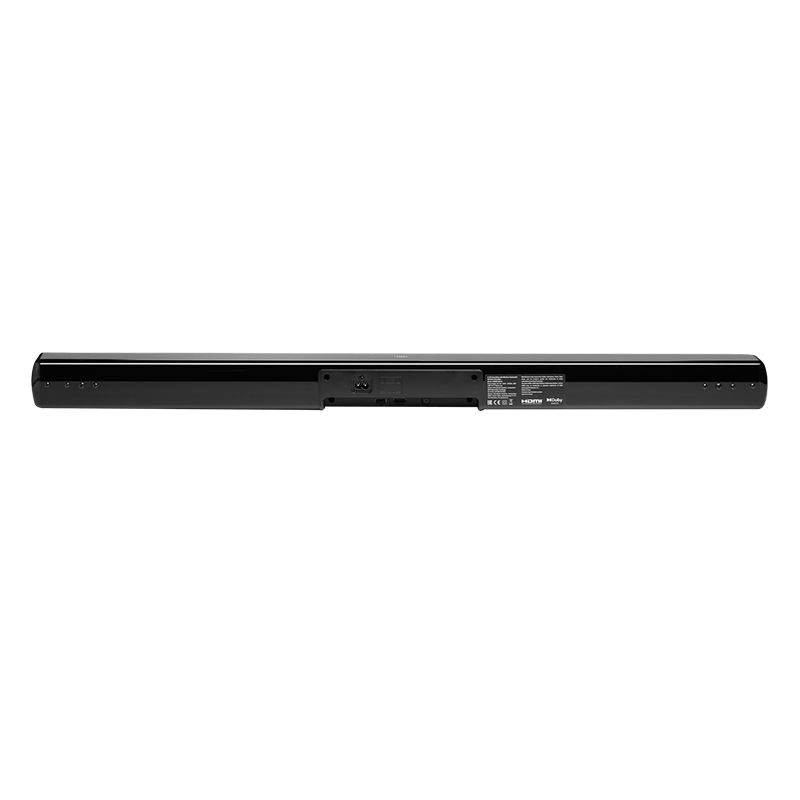

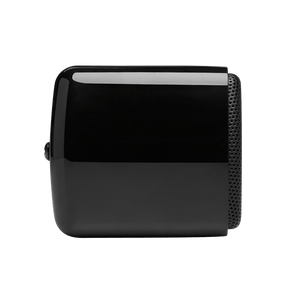

• Soundbar dimensions (W x H x D):
  900 x 62 x 67 (mm) / 35.4" x 2.44" x 2.64"

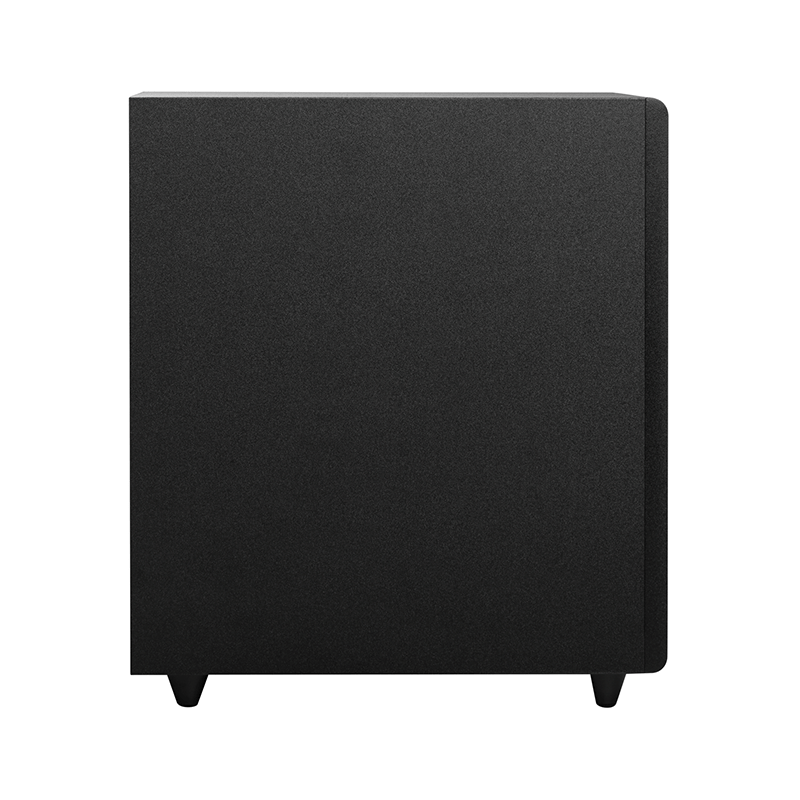

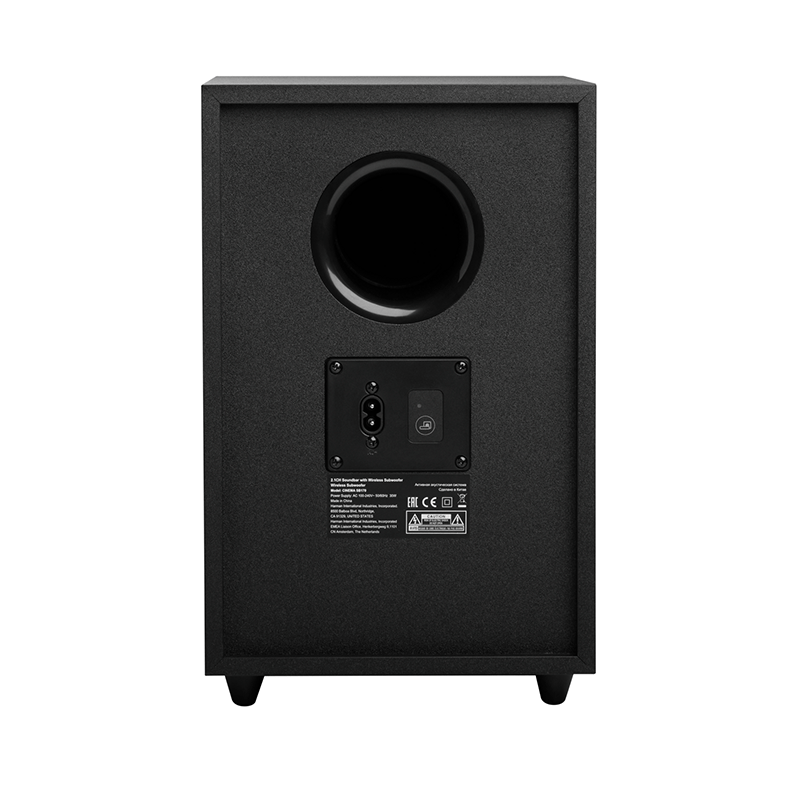

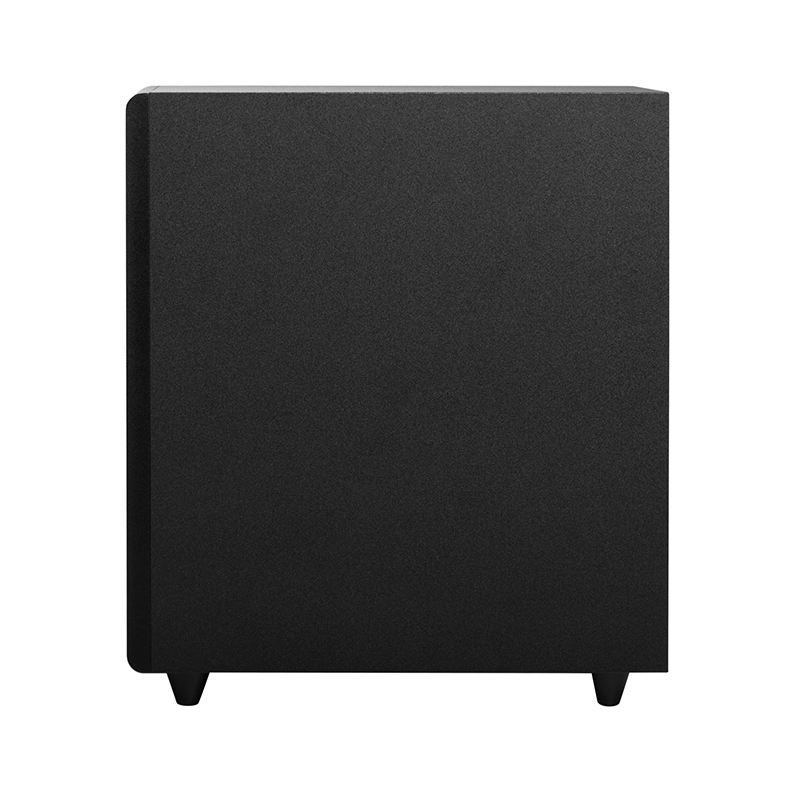

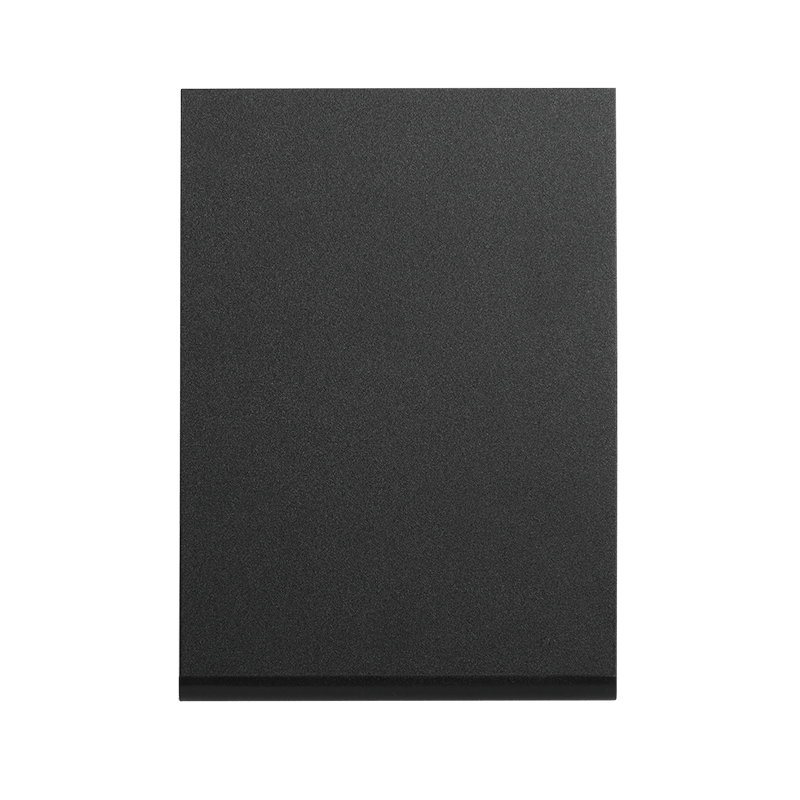

• Subwoofer dimensions (W x H x D):
  200 x 320 x 280 (mm) / 7.87" x 12.6" x 11"
• Soundbar weight: 1.65kg Subwoofer weight: 5kg
