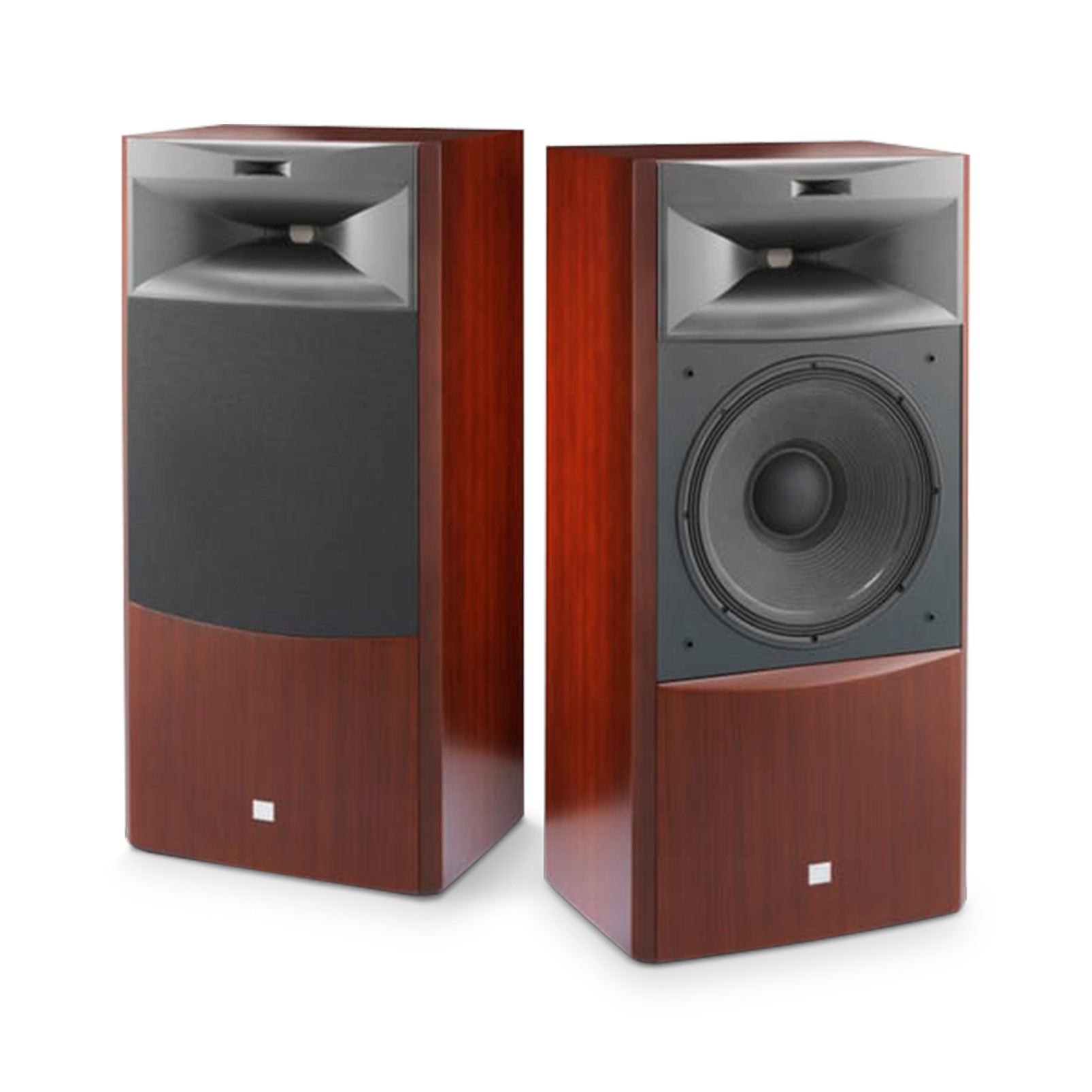

JBL S4700 Floorstand Loudspeaker

• General Features
• Key Specifications

General Features

Unit comes as a pair

15-inch pure pulp woofer with dual 3-inch voice coils

Neodymium motor structure and cast aluminum frame

2-inch Aqua-Plas-coated Titanium diaphragm high-frequency compression driver mated to a 90° x 60° Sonoglass Bi-Radial horn

0.75-inch Titanium diaphragm ultra-high-frequency compression driver mated to a 60° x 30° Sonoglass Bi-Radial horn

Internally braced, bass-reflex enclosure with a single rear-firing tuned port

Dual binding post inputs for bi-wire or bi-amplified connections

Furniture-grade cherry wood veneer finish

Key Specifications

• LF: 380mm (15") pure pulp cone with treated cloth edge
• HF: 1.8" Aqua-Plas-coated titanium diaphragm
• UHF: 0.75" Titanium diaphragm
• Maximum recommended amplifier power: 300 watts RMS
• Frequency response: 38Hz-40kHz (–6dB)
• Nominal impedance: 6 ohms
• Sensitivity: 94dB (2.83V/1m)
• Dimensions (HWD): 42.1" x 19.7" x 14.6"
• Weight: 120 lbs.
